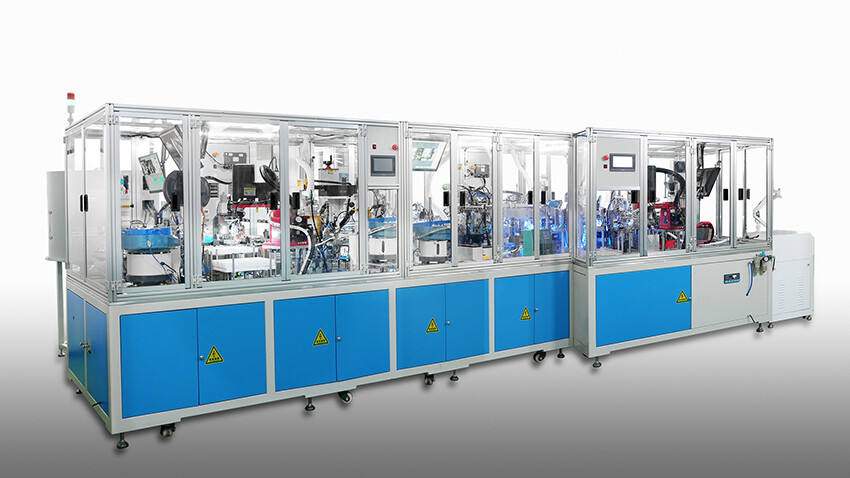

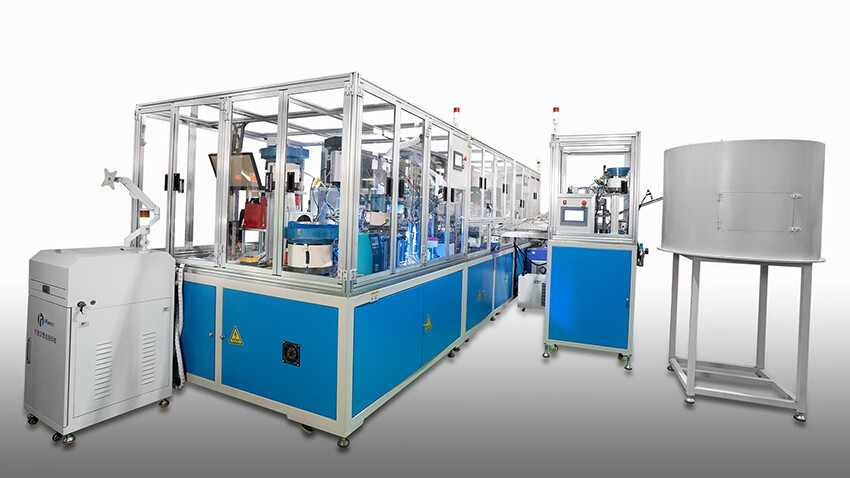

Automotive Air Damper Controller Assembly Line

Features:

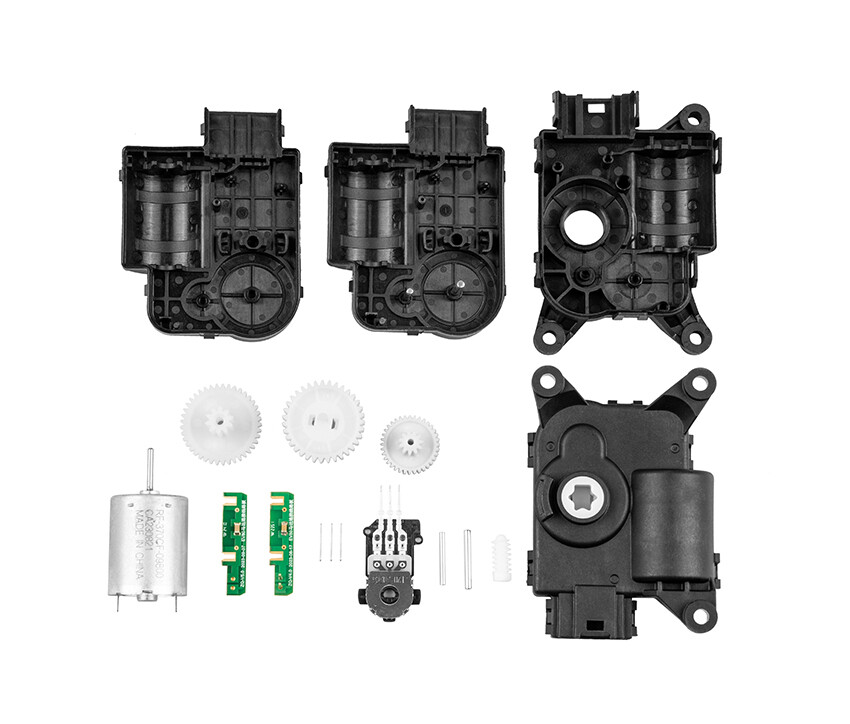

1.Automatic motor feeding with pin inspection

2.Automatic worm gear insertion onto motor shaft

3.Automatic PCB loading

4.Automatic dual-pin insertion into PCB

5.Automatic pin soldering on PCB

6.Automatic transfer of motor/worm assembly and PCB sub-assembly to next station

7.Automatic housing feeding with steel shaft insertion, transported to circulating fixture

8.Automatic motor and PCB assembly into housing

9.Automatic motor pin soldering to PCB

10.Automatic pinion gear installation

11.Automatic intermediate gear installation

12.Automatic main gear installation

13.Automatic gear lubrication

14.Automatic potentiometer installation

15.Vision inspection of all components

16.Automatic rear cover installation

17.Automatic laser marking

18.Automatic sorting (accepted/rejected units)

Specifications:

Power Supply: AC 220V 50Hz

Air Pressure: ≥0.6MPa

Yield: 700 pcs/hour
